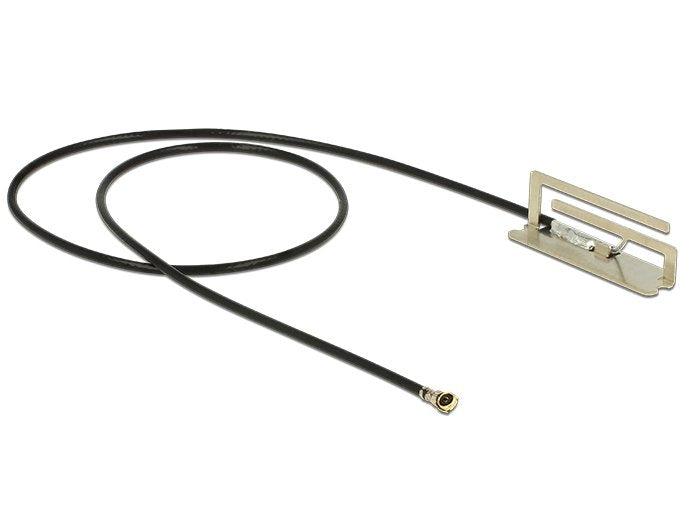

Delock 86217 Wlan 802.11 Ac/Ax/A/H/B/G/N Antenna I-Pex Inc., Mhf® 4l Plug 1.6 Dbi 25 Cm Pifa Internal

Descripción

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

PIFA antennas ( P lanar I nverted F -Shaped A ntenna) are particularly very flat antennas that can be integrated directly on the PCB.

Detalles tecnicos

• Connector: 1 x I-PEX Inc., MHF® 4L plug
• Frequency range:
  2400 - 2500 MHz
  5150 - 5850 MHz


• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain: 1.6 dBi
• VSWR: 2.5
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 21.5 x 7.0 x 6.0 mm
• Length incl. connectors (L): ca. 25 cm

Requisitos del sistema

• Device with one free I-PEX Inc., MHF® 4L port

Contenido del paquete

• Antenna

Paquete

• Bolsa de plástico con cremallera
